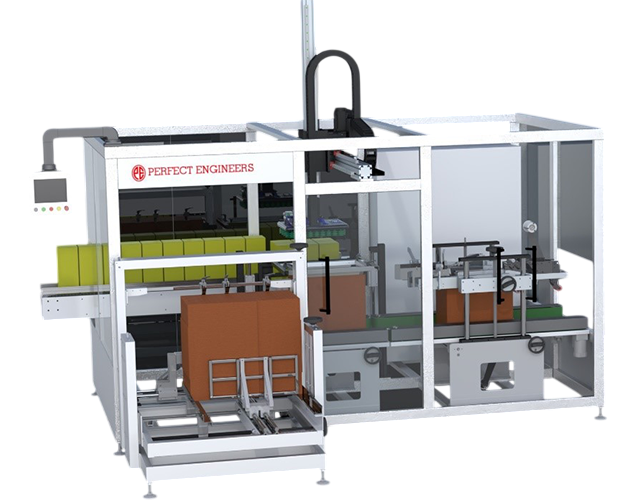

  • The units of carton guiding, case opening, case packing and case sealing are both driven by servo mechanism to ensure accurate positioning and gentle action.
  • The alignment system is adjustable to fit different carton sizes and alignment forms.
  • The carton pusher adopts a single-axis mechanical arm, which is convenient for installation and maintenance.
  • Each adjusting part is equipped with hand wheel and scale.
  • Equipped with vacuum detection device to improve the stability of the whole machine.
  • Alarm for malfunction, carton shortage, no case and case stuck.
TECHNICAL PARAMETERS
Machine Size (LXWXH)(mm) 3500 X 1950 X 3100
Voltage 3-phase, 440V, 50Hz
Case Size range (LXWXH)(mm) 300-500x200-400x200-350 (Customized)
Magazine Capacity (No. of Cartons) 80 (Customized)
Net Weight (Kg) 3000kg
Width .Of Adhesive Tape (mm) 48,60,70
Power (KW) 5KW

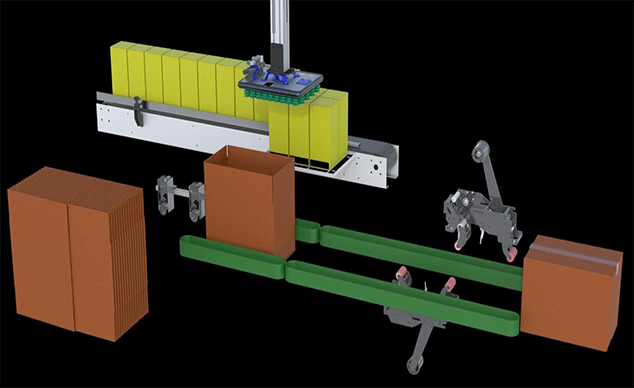

Working Flow:

  • Product infeed: The infeed direction depends on the exact requirement.
  • Pattern forming: The collating solution depends on the exact layer pattern.
  • Case magazine: Magazine capacity is adjustable.
  • Case erecting: Driven by servo unit.
  • Bottom flaps folding & Product loading: The loading solution will be different according to the exact requirement.
  • Top flaps folding & Tape sealing : Top and bottom sealing on the same station
  • Sealed product discharge: It could be connected to the palletizing machine.
